Roof Section Examples

2011-11-12

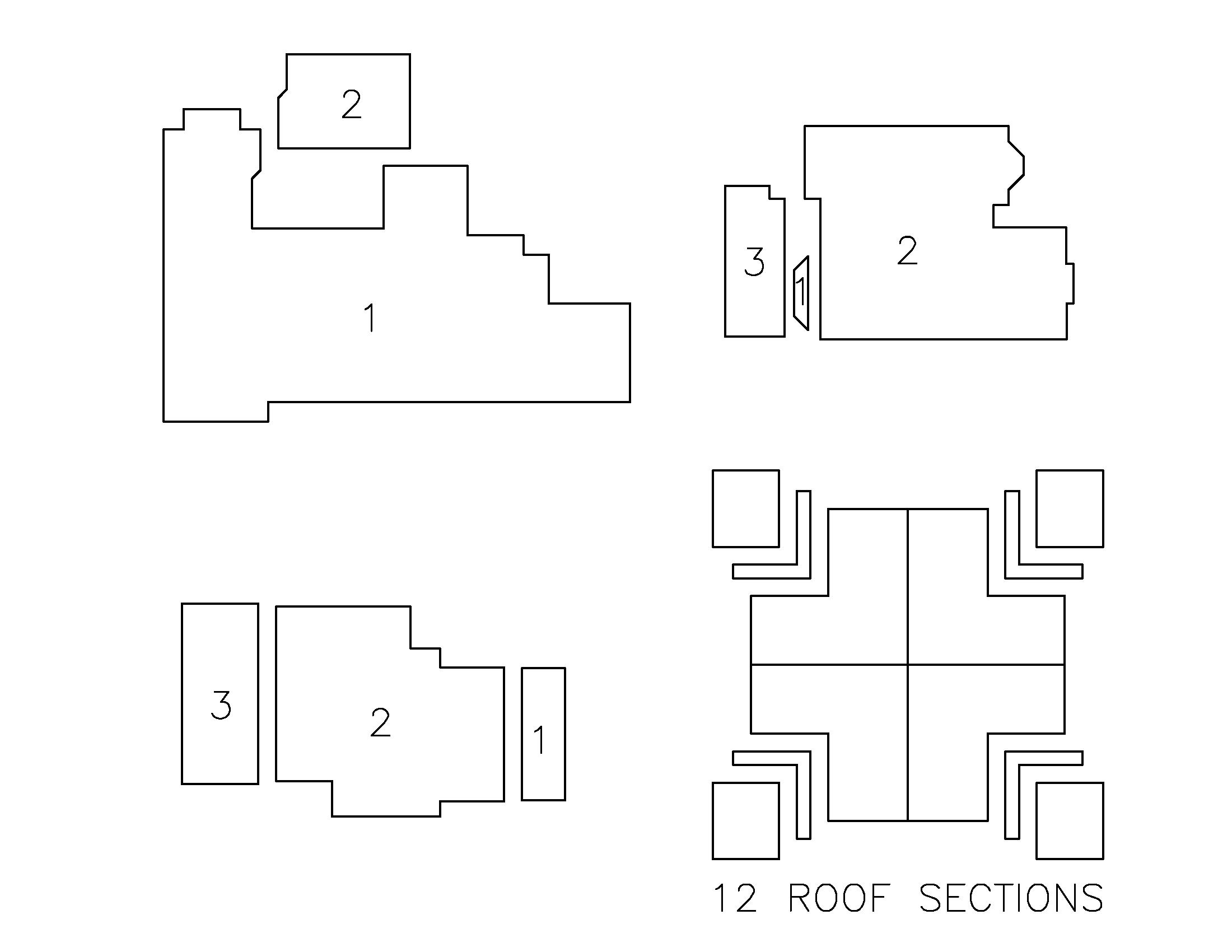

Find below the same roofs broken apart into roof sections.  A common misconception is that roof sections are defined by roof slopes. This is not the case if the roof slopes are only divided by valleys or ridges.  The cross shaped lines through the lower right roof plan indicates section divisions by legal description:
